The mtion studio service allow you to connect to your mtion studio software and run API triggers. To connect the service:

• Ensure mtion studio is updated to at least version 0.39.1
• Open mtion studio
• Ensure you have at least 1 clubhouse created
• Head to the Services page inside Mix It Up
• Select Connect under the mtion studio section

To interact with mtion studio, you would add a mtion studio Action to your command.

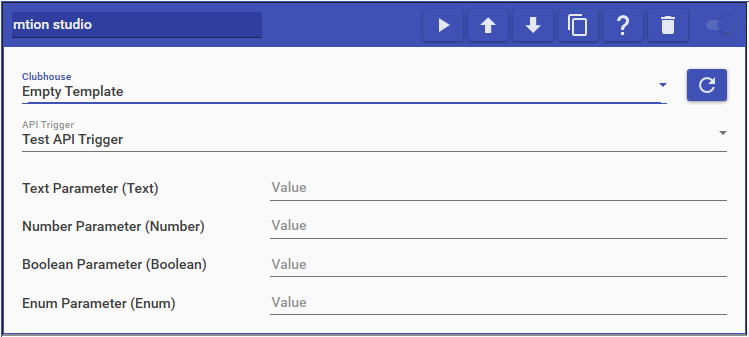

mtion studio Action

mtion studio actions allow you to run API triggers within your mtion studio clubhouses. To connect the software, see the mtion studio Service page for more information.

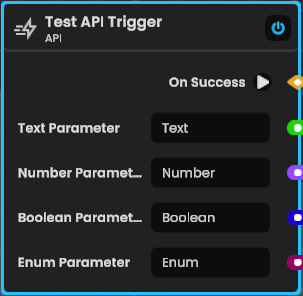

To run a trigger in mtion studio, it must be an API trigger. When defining the API trigger, you must specify a name for it and any parameters you would like to be pass on from Mix It Up to mtion studio when you trigger it:

mtion studio supports the following parameter types:

• Text: Any text-based data of any length.
• Number: Any whole or decimal number.
• Boolean: A true / false value. Acceptable values are “true”/“false” or any number greater than 0 for true and any number 0 or less for false.
• Enum: A positive, whole number.

After these parameters are set within mtion studio, you will see them appear within Mix It Up when selecting that specific API trigger from the mtion studio action. You may specify a value for any of the parameters of the API trigger, with Special Identifiers being supported for all values as long as the final resulting value conforms to the parameter type requirements (EX: A Number parameter’s value must actually be a number after Special Identifier replacement occurs).
